产品特点
- Support DVR by Monitor Out
- Output Resolution up to 1024×768 @ 60Hz
- Easy Installation
- N / P Video System Auto Detection
产品规格

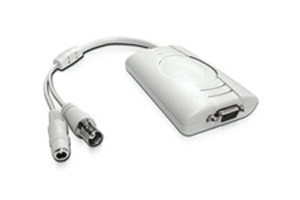

| Model | VGA02 |
| Connection | DVR Side: MONITOR OUTMonitor Side: D-Sub |
| Function | 1. Output Resolution Up to 1024×768@60Hz 2. Analog non-interlaced RGB Output Supported 3. NTSC / PAL System Auto Detection |
| Power | External adaptor DC5V @ 500mA |
| Power Consumption | 2W |
| Dimension (mm) | 87(L) × 64(W) × 24(H) |
